S-115 Light – PVC hose for food use

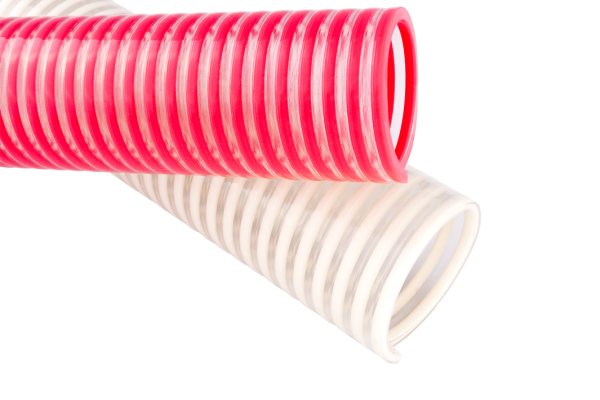

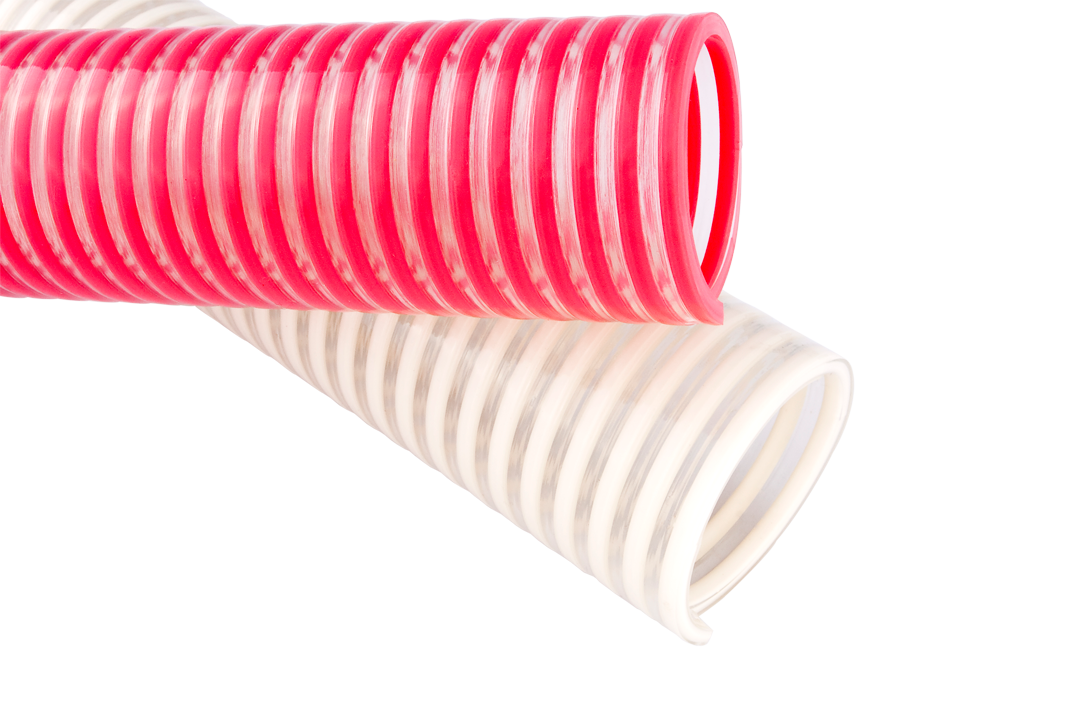

Hose made of flexible and see-through PVC reinforced with rigid  PVC helix. Clear and red colour. Smooth interior and exterior. Diameter from 20 mm to 200 mm.

Categories: , SKU: s-115-light

Description

  • Application: Flow of wine and alcohol until 20% and food products. Non Toxic.
  • Flexible and abrasion, corrosion and weather resistant.
  • Food grade and A Bisphenol and Phthalates free. According CE 10/2011 and 2016/1416 standards.(C Simulant).
  • Temperature. From -10ºC to +60ºC.
DOWNLOAD PDF

Certificates and Uses

Technical Data

Nominal Diameter Inside Diameter Outside Diameter Working Pressure Vacuum pressure Weight Standard length
mm mm mm kgf/cm2 20ºC kgf/cm2 22ºC gr/m m
20 20.0 24.5 7.0 25 210 50
25 25.0 30.0 7.0 25 270 50
30 30.0 35.0 7.0 25 340 50
32 32.0 37.0 7.0 25 360 50
35 35.0 40.5 6.0 22 450 50
40 40.0 46.0 6.0 22 530 50
45 45.0 52.0 6.0 22 670 50
50 50.5 57.5 5.0 20 750 50
55 55.5 62.5 5.0 20 960 50
60 60.5 68.5 5.0 20 1060 50
65 65.5 73.3 5.0 20 1120 50
70 70.5 79.5 5.0 20 1280 50
75 75.5 84.0 5.0 20 1380 50
80 80.5 91.0 5.0 20 1600 50
90 90.5 100.5 4.0 16 1950 30
100 100.5 111.5 4.0 16 2300 30
110 110.0 123.5 3.0 9 2600 30
125 125.0 137.0 2.5 8 3130 30
150 151.0 167.0 2.0 7 4885 20
200 200.0 217.0 1.0 4 7510 10
